Accumulating Overhead Conveyor - Surface Treatment

Solutions for handling, transporting and transferring parts
BY ACCUMULATION IN THE SURFACE TREATMENT SECTOR

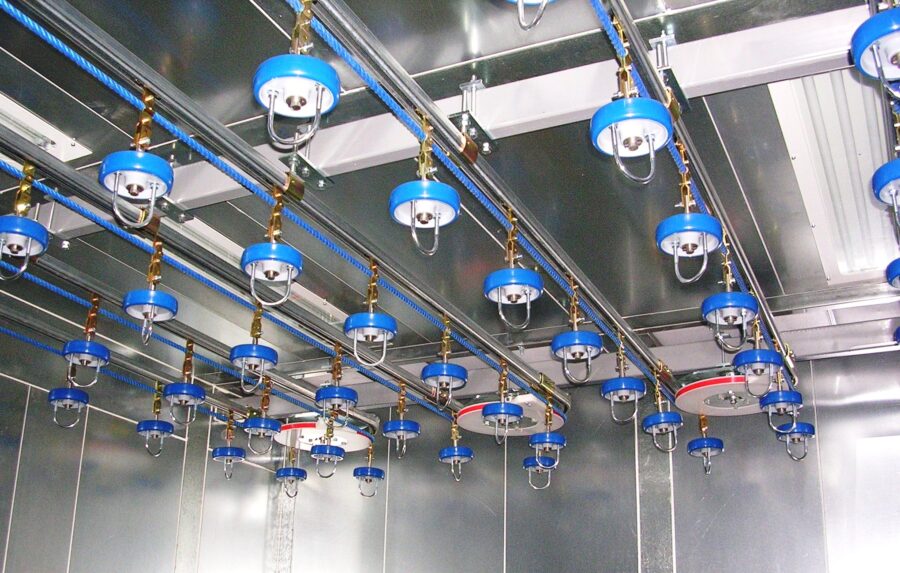

crochets tournants dans cabine de peinture

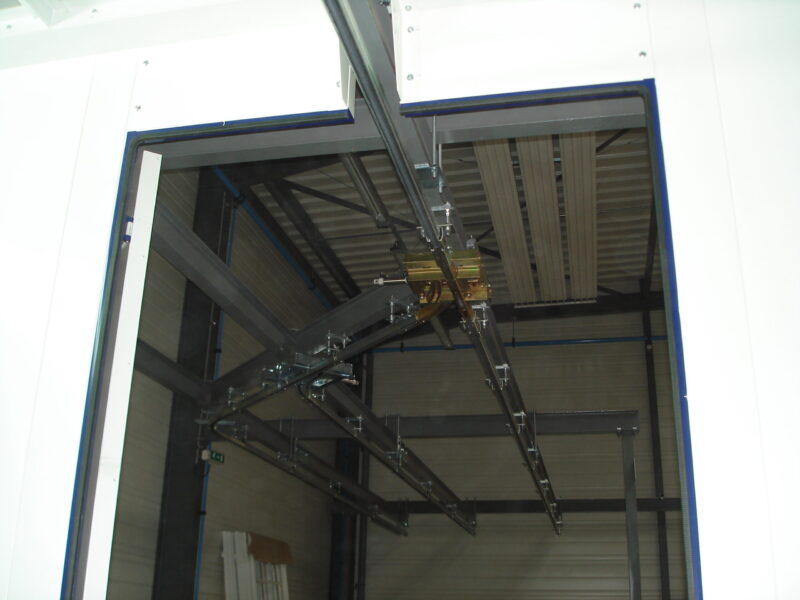

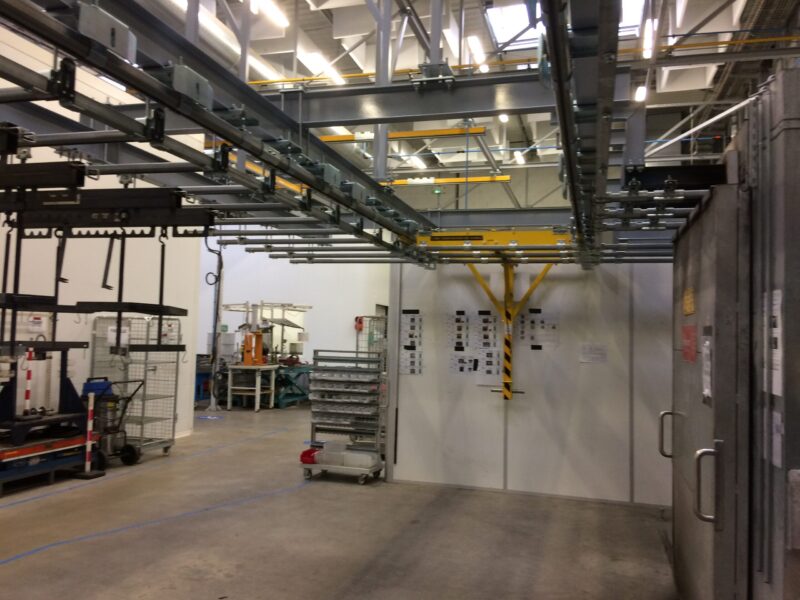

Our overhead conveyor system offers a handling solution for hanging, storing, moving and transferring products that need to undergo various painting and surface treatment techniques.

For loads of less than 100 kg that need to be heated to less than 70°C, our twin-rail overhead conveyor makes it easy to:

Store before painting

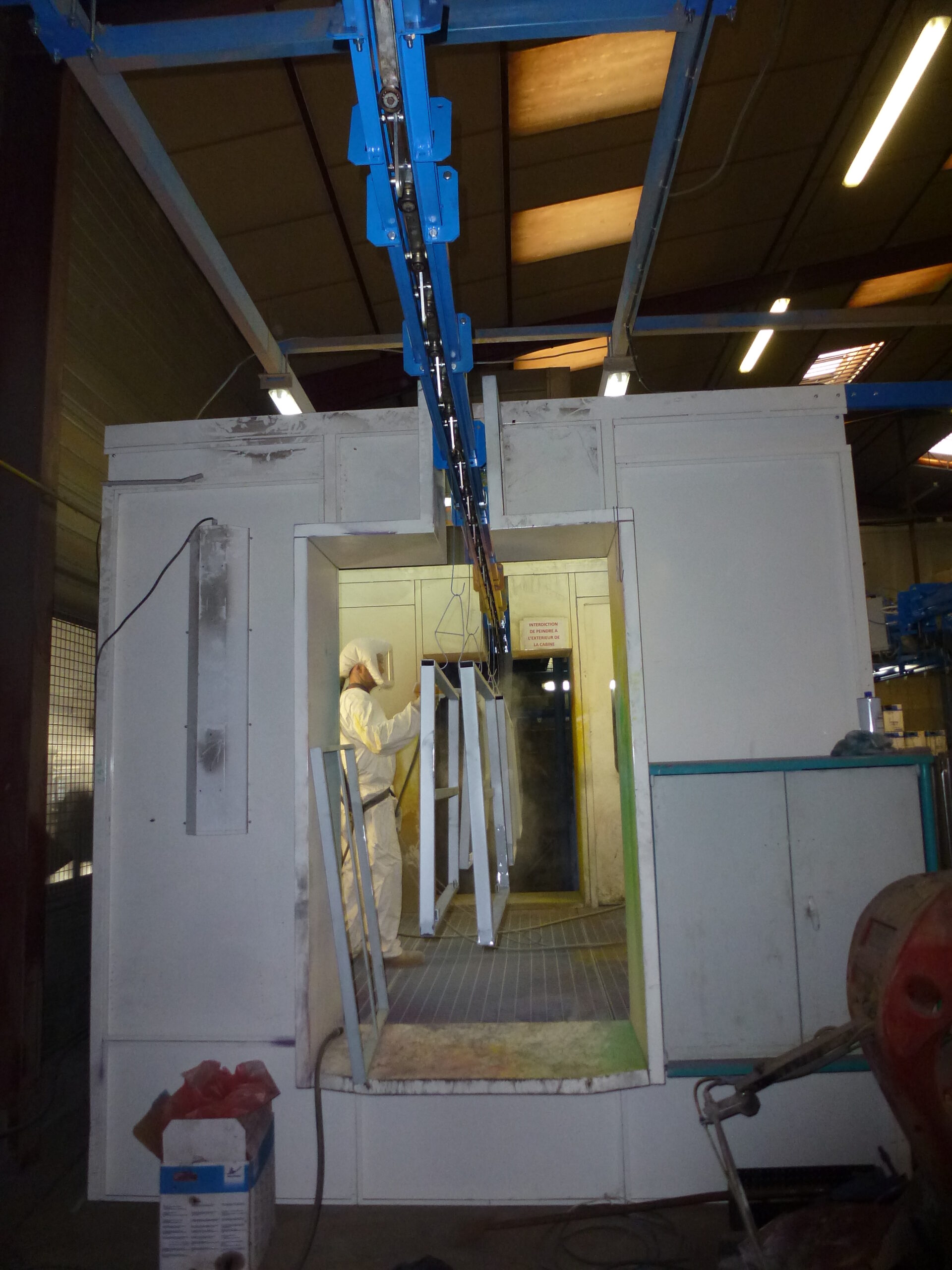

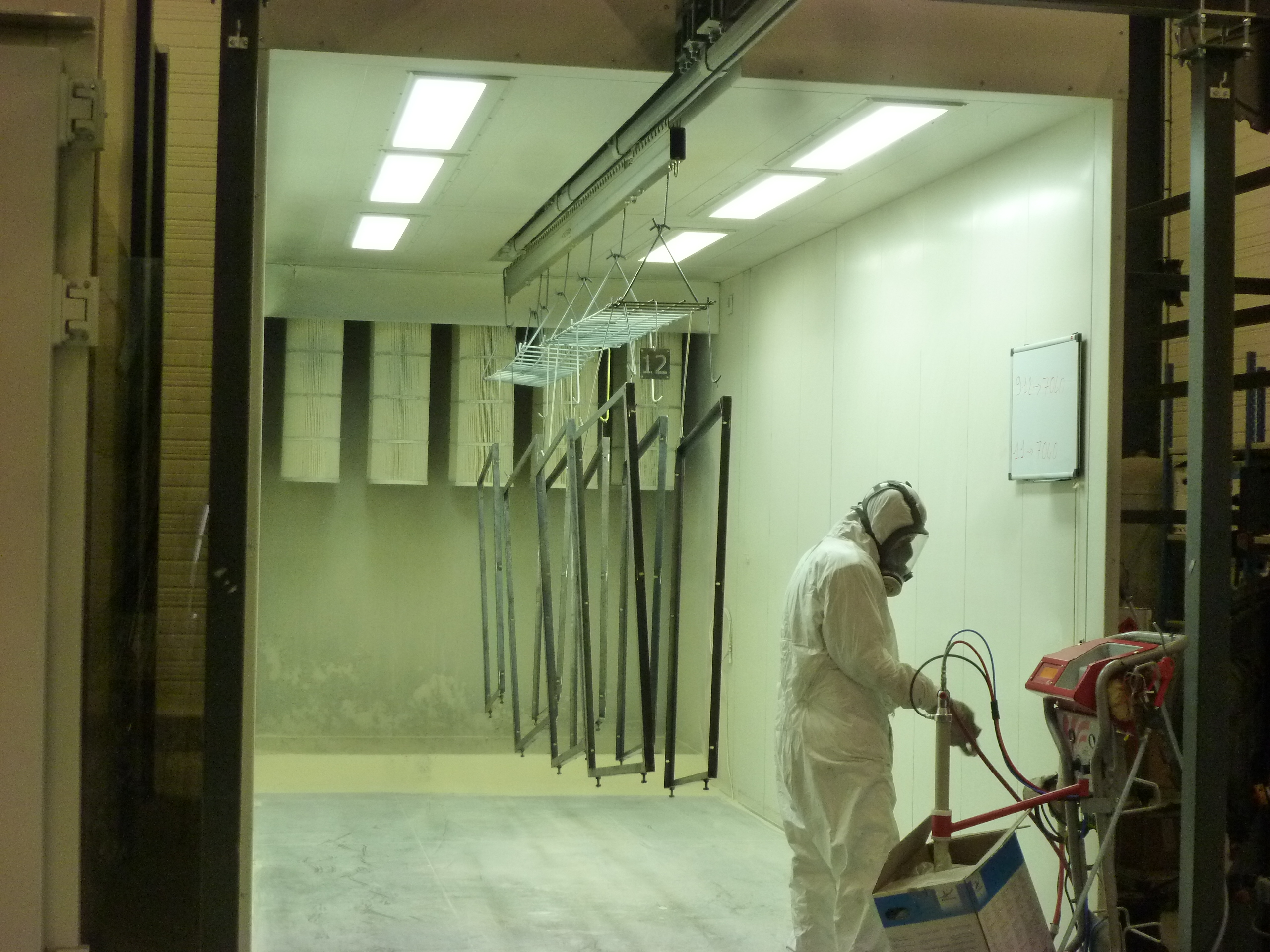

Paint in the cab
Store after drying

For loads weighing over 100 kg and needing to be heated to over 70°C, there are overhead handling solutions, either manually operated or managed by another automated system. This system also makes it possible to store materials before painting and to paint ergonomically.

Our parts transfer and transport system can therefore be adapted to a variety of products and sectors of activity, such as:

joinery: windows, doors, wooden or aluminium shutters, etc.
engines
car parts (bodywork, etc.)
etc.

Whether you produce small or large parts, the Technimanut twin-rail conveyor provides a solution for storing and transporting light parts in series to facilitate and optimise productivity in the surface treatment industry.

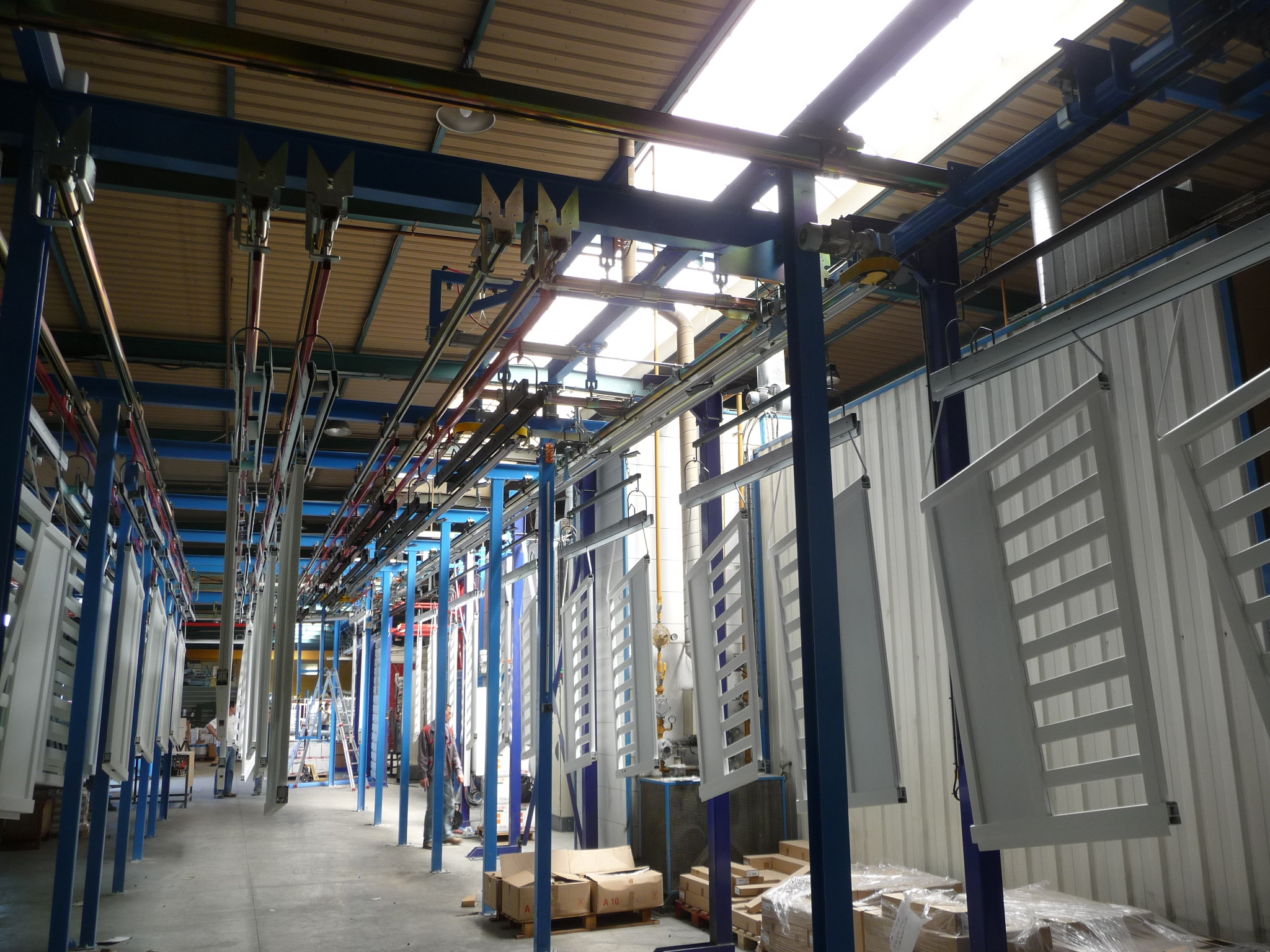

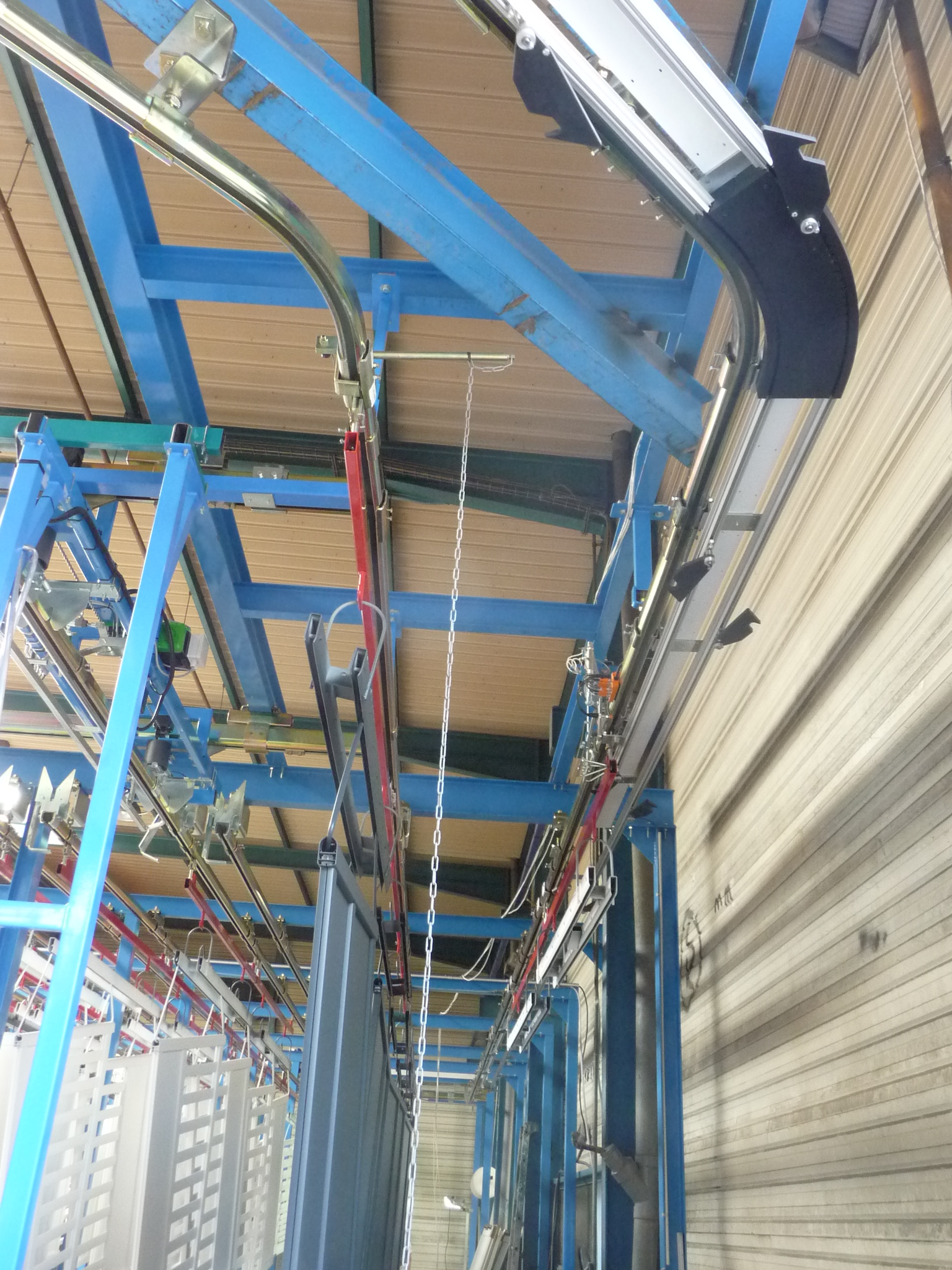

Our bi-rail air transport system allowsloads to be accumulated using the power & free system. This technology makes it possible to:

deliver available products according to the needs of production operators
put certain parts on hold before being processed by another operator
link workstations or robotic islands, while making them independent. The power & free bi-rail conveyor offers certain operators the possibility of working at a pace that does not depend on the imposed production rate.

What’s more, as our load transport system is motorised, it ensures that your products move at a constant speed and integrates perfectly into automated production lines. Your parts are then transported autonomously, making your production lines run more smoothly and more efficiently. Our overhead conveyor is not just a closed automatic circuit, it’s a system of rails that creates different storage areas.

Thanks to our method of transporting loads by accumulation, we offer safe and ergonomic working conditions that prevent musculoskeletal disorders and free up floor space.

As a supplier of turnkey installations, Technimanut provides you with the entire management system for your powered overhead conveyor.

ADVANTAGES

Requires little care and maintenance
Low energy consumption
Adaptable to all types of buildings
Silent
Frees up floor space
Serves a large area of your production space by integrating switches

Options for accumulator handling solutions
IN SURFACE TREATMENT

Our systems can be fitted with options, giving you the possibility to:

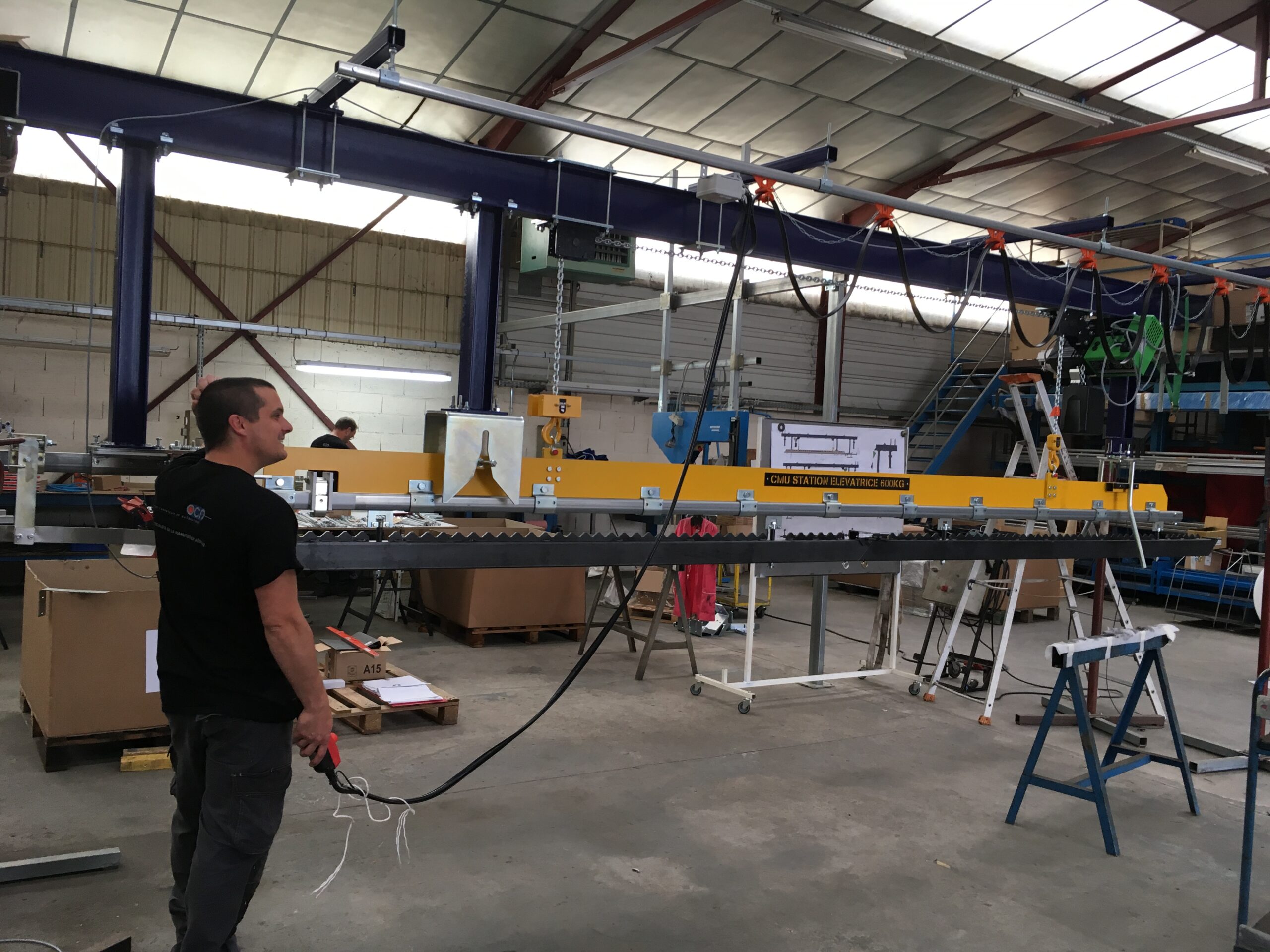

load and unload your products by integrating a lifting station
load bulky parts with a loading table that accompanies your load
redirect your products to different work areas using a shunting and transhipment system
